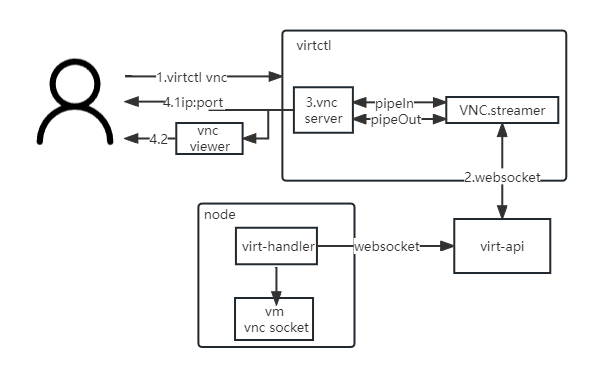

在kubevirt中，virtctl 命令提供 vnc 的功能，virtctl 会向virt-api发送vnc请求，virt-api将请求转发给virt-handler，virt-handler在节点上利用对应虚拟机的vnc socket 与虚机建立vnc连接。
代码入口在pkg/virtctl/root.go vnc.NewCommand(clientConfig)
pkg/virt-api/api.go subresourceApp.VNCRequestHandler
cmd/virt-handler/virt-handler.go consoleHandler.VNCHandler
virtctl vnc 命令接受listenAddress、proxyOnly、customPort三个参数，并根据config 创建了一个 VNC{} ，然后执行 VNC.Run(cmd, args)
在准备阶段中，根据config 生成 virtCli。接着与vmi创建websocket连接。
1
2
3
4
5
6
7
8
9
10
|
virtCli, err := kubecli.GetKubevirtClientFromClientConfig(o.clientConfig)
if err != nil {
return err
}
// setup connection with VM
vnc, err := virtCli.VirtualMachineInstance(namespace).VNC(vmi)
if err != nil {
return fmt.Errorf("Can't access VMI %s: %s", vmi, err.Error())
}
|
VNC方法会去请求相应的资源（virt-api）建立 websocket 长连接
1
2
3
4
|
u.Path = path.Join(
u.Path,
fmt.Sprintf("/apis/subresources.kubevirt.io/%s/namespaces/%s/%s/%s/%s", v1.ApiStorageVersion, namespace, resource, name, subresource),
)
|
VNC 是wsStreamer，Stream 方法做了一个转发，从option.in 拿数据并将conn的数据转发给 option.out
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
//kubevirt.io/client-go/kubecli/streamer.go
func (ws *wsStreamer) Stream(options StreamOptions) error {
copyErr := make(chan error, 1)
go func() {
_, err := CopyTo(ws.conn, options.In)
copyErr <- err
}()
go func() {
_, err := CopyFrom(options.Out, ws.conn)
copyErr <- err
}()
defer ws.streamDone()
return <-copyErr
}
|
根据ip和端口的输入参数，生成 tcpaddr，并监听该地址，该server 是用来将websocket 转发给client用的。接着创建两个pipe，将pipeInReader的数据传给VNC ws conn，将VNC ws conn的数据传给pipeOutWriter。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
|
// Format the listening address to account for the port (ex: 127.0.0.0:5900)
// Set listenAddress to localhost if proxy-only flag is not set
if !proxyOnly {
listenAddress = "127.0.0.1"
glog.V(2).Infof("--proxy-only is set to false, listening on %s\n", listenAddress)
}
listenAddressFmt = listenAddress + ":%d"
lnAddr, err := net.ResolveTCPAddr("tcp", fmt.Sprintf(listenAddressFmt, customPort))
if err != nil {
return fmt.Errorf("Can't resolve the address: %s", err.Error())
}
// The local tcp server is used to proxy the podExec websock connection to vnc client
ln, err := net.ListenTCP("tcp", lnAddr)
if err != nil {
return fmt.Errorf("Can't listen on unix socket: %s", err.Error())
}
// End of pre-flight checks. Everything looks good, we can start
// the goroutines and let the data flow
// -> pipeInWriter -> pipeInReader
// remote-viewer -> unix sock connection
// <- pipeOutReader <- pipeOutWriter
pipeInReader, pipeInWriter := io.Pipe()
pipeOutReader, pipeOutWriter := io.Pipe()
k8ResChan := make(chan error)
listenResChan := make(chan error)
viewResChan := make(chan error)
stopChan := make(chan struct{}, 1)
doneChan := make(chan struct{}, 1)
writeStop := make(chan error)
readStop := make(chan error)
go func() {
// transfer data from/to the VM
k8ResChan <- vnc.Stream(kubecli.StreamOptions{
In: pipeInReader,
Out: pipeOutWriter,
})
}()
|
接着处理监听到的请求，接收到vnc请求后，创建 Socket 将 VNC ws conn的数据通过pipeOutReader 传给socket的fd，将socket fd的数据传给pipeInWriter,完成了vnc client 端到 VNC proxy的数据交换。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
go func() {
start := time.Now()
glog.Infof("connection timeout: %v", LISTEN_TIMEOUT)
// Don't set deadline if only proxy is running and VNC is to be connected manually
if !proxyOnly {
// exit early if spawning vnc client fails
ln.SetDeadline(time.Now().Add(LISTEN_TIMEOUT))
}
fd, err := ln.Accept()
if err != nil {
glog.V(2).Infof("Failed to accept unix sock connection. %s", err.Error())
listenResChan <- err
}
defer fd.Close()
glog.V(2).Infof("VNC Client connected in %v", time.Now().Sub(start))
templates.PrintWarningForPausedVMI(virtCli, vmi, namespace)
// write to FD <- pipeOutReader
go func() {
_, err := io.Copy(fd, pipeOutReader)
readStop <- err
}()
// read from FD -> pipeInWriter
go func() {
_, err := io.Copy(pipeInWriter, fd)
writeStop <- err
}()
// don't terminate until vnc client is done
<-doneChan
listenResChan <- err
}()
|
若为proxyOnly就返回监听的端口，否则进入checkAndRunVNCViewer 打开一个vnc client应用程序
1
2
3
4
5
6
7
8
9
10
11
12
13
|
if proxyOnly {
defer close(doneChan)
optionString, err := json.Marshal(struct {
Port int `json:"port"`
}{port})
if err != nil {
return fmt.Errorf("Error encountered: %s", err.Error())
}
fmt.Fprintln(cmd.OutOrStdout(), string(optionString))
} else {
// execute VNC Viewer
go checkAndRunVNCViewer(doneChan, viewResChan, port)
}
|
checkAndRunVNCViewer主要检查所在host的操作系统和存在的vnc应用，选择一个进行vnc连接
如：vncviewer vnc://127.0.0.1:XXXX --debug
vncBin = TIGER_VNC
args = tigerVncArgs(port)
...
cmnd := exec.Command(vncBin, args...)
最后在对chan 进行处理，优雅退出
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
go func() {
defer close(stopChan)
interrupt := make(chan os.Signal, 1)
signal.Notify(interrupt, os.Interrupt)
<-interrupt
}()
select {
case <-stopChan:
case err = <-readStop:
case err = <-writeStop:
case err = <-k8ResChan:
case err = <-viewResChan:
case err = <-listenResChan:
}
if err != nil {
return fmt.Errorf("Error encountered: %s", err.Error())
}
return nil
|
在vnc中会去请求fmt.Sprintf("/apis/subresources.kubevirt.io/%s/namespaces/%s/%s/%s/%s", v1.ApiStorageVersion, namespace, resource, name, subresource)建立长连接。
该URI的服务端是virt-api
1
2
3
4
5
6
|
//pkg/virt-api/api.go
subws.Route(subws.GET(definitions.NamespacedResourcePath(subresourcesvmiGVR) + definitions.SubResourcePath("vnc")).
To(subresourceApp.VNCRequestHandler).
Param(definitions.NamespaceParam(subws)).Param(definitions.NameParam(subws)).
Operation(version.Version + "VNC").
Doc("Open a websocket connection to connect to VNC on the specified VirtualMachineInstance."))
|
VNC handler 创建 streamer 去处理 request，其中streamer.dial 为
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
func (app *SubresourceAPIApp) VNCRequestHandler(request *restful.Request, response *restful.Response) {
activeConnectionMetric := apimetrics.NewActiveVNCConnection(request.PathParameter("namespace"), request.PathParameter("name"))
defer activeConnectionMetric.Dec()
streamer := NewRawStreamer(
app.FetchVirtualMachineInstance,
validateVMIForVNC,
app.virtHandlerDialer(func(vmi *v1.VirtualMachineInstance, conn kubecli.VirtHandlerConn) (string, error) {
return conn.VNCURI(vmi)
}),
)
streamer.Handle(request, response)
}
func (app *SubresourceAPIApp) virtHandlerDialer(getURL URLResolver) dialer {
return handlerDial{
getURL: getURL,
app: app,
}
}
|
Handler 向virt-handler 使用s.dialer.DialUnderlying(namespace, name)方法创建一个 ws 连接
URL 模板如wss://%s:%v/v1/namespaces/%s/virtualmachineinstances/%s/vnc
并且将client端（virt-api）的连接处理 upgrade 为 websocket 请求（clientConnectionUpgrade(request, response)）
然后将两个conn 的数据通过io.copy传递。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
|
func (s *Streamer) Handle(request *restful.Request, response *restful.Response) error {
namespace := request.PathParameter(definitions.NamespaceParamName)
name := request.PathParameter(definitions.NameParamName)
serverConn, statusErr := s.dialer.DialUnderlying(namespace, name)
if statusErr != nil {
writeError(statusErr, response)
return statusErr
}
clientConn, err := clientConnectionUpgrade(request, response)
if err != nil {
writeError(errors.NewBadRequest(err.Error()), response)
return err
}
ctx, cancel := context.WithCancel(request.Request.Context())
defer cancel()
go s.cleanupOnClosedContext(ctx, clientConn, serverConn)
if s.keepAliveClient != nil {
go s.keepAliveClient(context.Background(), clientConn, cancel)
}
results := make(chan streamFuncResult, 2)
defer close(results)
go s.streamToClient(clientConn, serverConn, results)
go s.streamToServer(clientConn, serverConn, results)
result1 := <-results
// start canceling on the first result to force all goroutines to terminate
cancel()
result2 := <-results
if result1 != nil {
return result1
}
return result2
}
|
virt-handler用来在节点上真正与虚机交互，virt-handler 的服务端代码入口在：
1
2
|
//cmd/virt-handler/virt-handler.go
ws.Route(ws.GET("/v1/namespaces/{namespace}/virtualmachineinstances/{name}/vnc").To(consoleHandler.VNCHandler))
|
VNCHandler 获取节点上的/proc/pid/root/var/run/kubevirt-private/uid/virt-vnc socket 文件，然后unixSocketDialer(vmi, unixSocketPath)根据socket文件创建conn，stream中将客户端conn中数据与vnc server conn中数据通过io.copy进行交换。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
func (t *ConsoleHandler) VNCHandler(request *restful.Request, response *restful.Response) {
vmi, code, err := getVMI(request, t.vmiInformer)
if err != nil {
log.Log.Object(vmi).Reason(err).Error(failedRetrieveVMI)
response.WriteError(code, err)
return
}
unixSocketPath, err := t.getUnixSocketPath(vmi, "virt-vnc")
if err != nil {
log.Log.Object(vmi).Reason(err).Error("Failed finding unix socket for VNC console")
response.WriteError(http.StatusBadRequest, err)
return
}
uid := vmi.GetUID()
stopChn := newStopChan(uid, t.vncLock, t.vncStopChans)
defer deleteStopChan(uid, stopChn, t.vncLock, t.vncStopChans)
t.stream(vmi, request, response, unixSocketDialer(vmi, unixSocketPath), stopChn)
}
|
vnc server 在 virt-launcher 创建虚机时在XML中指定：
1
2
3
4
5
6
7
8
9
10
|
//pkg/virt-launcher/virtwrap/converter/converter.go
domain.Spec.Devices.Graphics = []api.Graphics{
{
Listen: &api.GraphicsListen{
Type: "socket",
Socket: fmt.Sprintf("/var/run/kubevirt-private/%s/virt-vnc", vmi.ObjectMeta.UID),
},
Type: "vnc",
},
}
|
https://libvirt.org/formatdomain.html#graphical-framebuffers
